Whalen Water Source

We install, repair and service Whalen water-source heat pumps and air conditioners.

Call us now at 416.870.9760

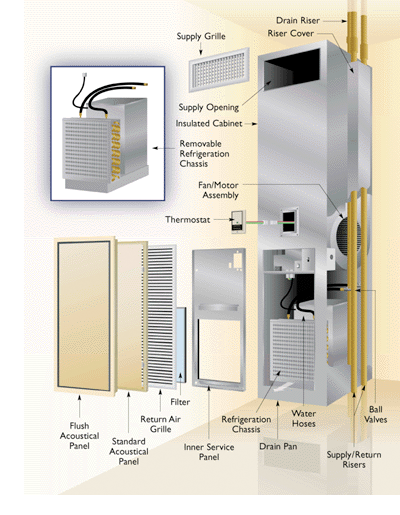

Features and Benefits

Supply Opening
Left, Right, Front, Back and Top Combinations. All supply openings are painted black to block the view into the unit and when one unit is used for two rooms, a sight baffle is placed between the two grilles.

Supply Grille
Aluminum construction minimizes future maintenance and eliminates oxidation that can be caused from condensationÑ Single or Double Deflection with or without an opposed blade damper

Supply/Return Risers
Provided to meet the requirements of the jobsite. Custom lengths can be provided to meet the exact floor to floor dimension of the project. Risers are factory installed and piped to ball valves within the cabinet.

Riser Cover
Galvanized steel protective cover is standard to avoid damage during shipping, handling and installation

Ball Valves
Shut off valves with hose bib (GHT) connection

Fan/Motor Assembly
Plug-in type; easily removed through the return air opening Insulation High density with thermal and acoustical properties

Cabinet
The galvanized monocoque construction permits the direct application of plaster or drywall

Refrigeration Chassis
Removable-floating design with insulated compressor compartment and vibration isolation

Water Hoses
Connects chassis to the supply and return water piping. Isolates compressor sound from the building piping system.

Inner Service Panel
Removable for access to unit control wiring and internal piping

Filter
Throwaway or permanent

Drain Pan
Covers the entire unit bottom Thermostat Low voltage; plug-in or remote mounted; manual or automatic changeover; electro-mechanical or electronic

Acoustical Panel
Standard and flush mounted design with hinged door to allow filter removal without the use of tools

Return Air Grille
Aluminum with standard or removable core capabilities

Unit Tagging
Each unit is individually boxed and tagged with factory and customer supplied information. Whalen units can be tagged with specific room numbers, riser numbers or any special requirement of the project.

ARI Certified
